Details

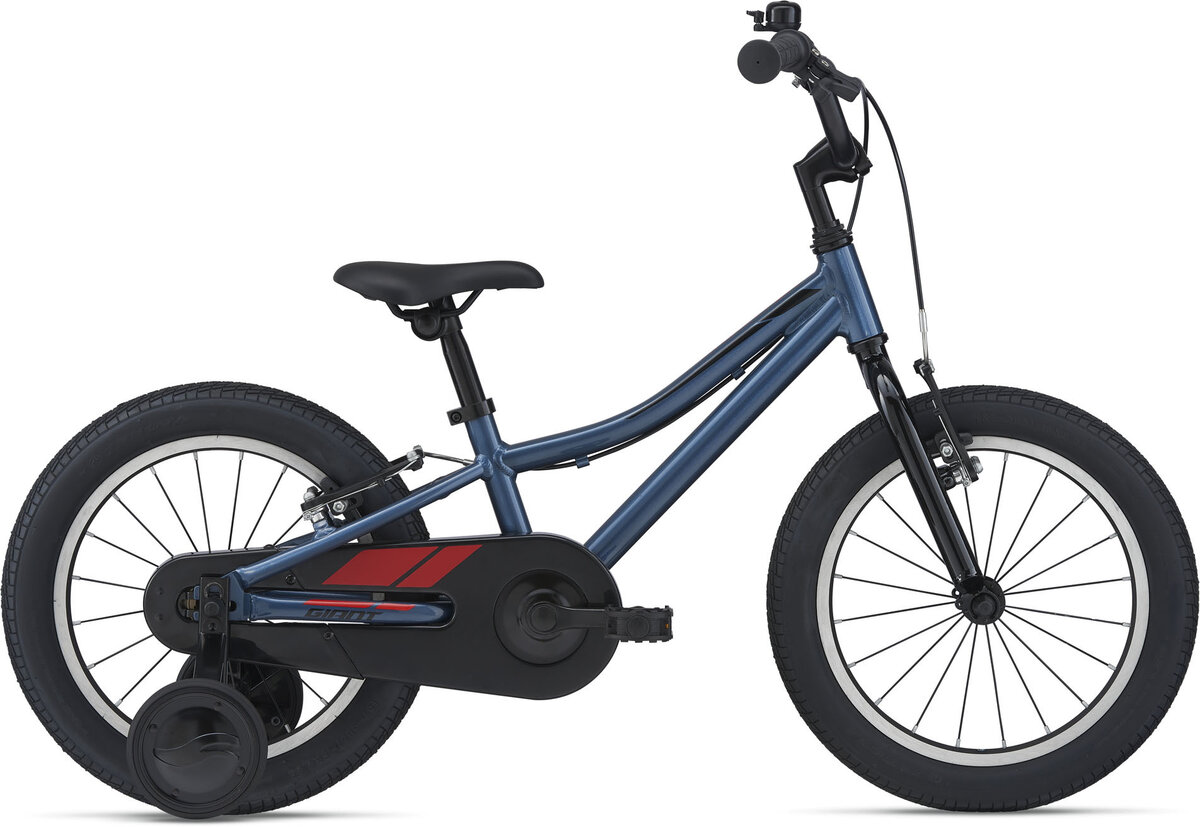

Nothing beats the feeling of your first pedal bike. This two-wheeler comes with removable training wheels and makes it easy for kids to fall in love with cycling.
With 16-inch wheels, a lightweight aluminum frame, and removable training wheels, Animator makes learning to ride easy and fun. A shorter crank and narrow Q-factor make it easier to pedal, and short-reach brake levers give young riders confident stopping power. It also has an adjustable riding position and longer insertion depth for the seatpost, which makes it easier to achieve a perfect fit for kids of different heights. It comes with removable training wheels, so it's easy to get started and then graduate to two wheels whenever they're ready.

| Size | One Size |
|---|---|
| A. Reach (mm) | 276 |
| B. Stack (mm) | 328 |
| C. Standover (mm) | 407 |
| D. Effective Top Tube (mm) | 382 |
| E. Head Tube Angle | 71.0° |
| F. Head Tube Length (mm) | 100 |
| G. Seat Tube Angle | 72.0° |
| H. Seat Tube Length (mm) | 208 |
| J. Bottom Bracket Drop (mm) | 0 |
| K. Fork Rake/Offset (mm) | 35 |
| L. Trail (mm) | 80.7 |
| M. Wheelbase (mm) | 738 |
| O. Chainstay Length (mm) | 310 |
| Handlebar Width (mm) | 525 |
| Stem Length (mm) | 40 |
| Crank Length (mm) | 89 |
| Wheel Size | 16" |
| One Size | 105 cm to 125 cm |
|---|
Due to supply-chain issues, Specs are subject to change without notice.
Specs
| Frame | ALUXX-Grade Aluminum |
|---|---|
| Fork | high-tensile steel |
| Rims | Giant Kids 16", alloy |
| Hubs | nutted, 20h |
| Spokes | stainless |
| Tires | Innova, 16x2.25 |
| Bottom Bracket | loose ball |
| Crankset | forged alloy, 28t |
| Cassette/Freewheel | 16t |
| Chain | KMC C410 |
| Brakes | alloy, linear pull |
| Brake Levers | alloy junior, adjustable reach |
| Handlebars | Giant Kids, mid rise, alloy, 25.4 |
| Stem | alloy quill |
| Seatpost | alloy, 25.4 |
| Saddle | Giant Kids |
| Pedals | platform |
| Accessories & Extras | training wheels, bell, protective pad |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Blue Ashes / 16-inch | 04712878741362 | 2204010120 | |
| Concrete / 16-inch | 04712878741409 | 2204010220 | 210000019081 |
