FEEL THE RUSH ON THE EMBOLDEN E+ 1. A FULL-SUSPENSION ELECTRIC MOUNTAIN BIKE DESIGNED TO HELP YOU SHRED DEMANDING TRAILS, BREEZE THE CLIMBS AND CONQUER OBSTACLES WITH CONFIDENCE. NOTHING IS OFF-LIMITS NOW.
KEY PERFORMANCE FACTORS
Capable and Fun
The high-performing Embolden E+ provides an exhilarating ride. It has a maximum range of 180km, loads of travel (140mm front, 125mm rear), and a powerful motor (75Nm of torque). Epic mountain biking, trekking, and touring adventures are now well within your capabilities.
Versatile for Multi-Usage
The Embolden E+ is your new secret weapon. With its 140mm front/125mm rear suspension, integrated kickstand, fender mounts, and carrier compatibility, this E-bike is ready to tackle challenging technical trails and tick off your bucket list of touring and trekking adventures.
Premium, Integrated Design
This E-bike brings head-turning wow factor to the trails thanks to its internally routed cables, smooth and simple frame lines, and attractive color and graphics. Additionally, the lower standover height makes it easy to get on and off.
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
ENERGYPAK 625 / SYNCDRIVE SPORT
- Extreme: 37 miles
- Good: 68 miles
- Ideal: 118 miles
TECHS & FEATURES
ALUXX SL ALUMINUM TECHNOLOGY
This High-Performance level, state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. These framesets also feature unique welding technologies for a high-performance ride quality.
FLEXPOINT SUSPENSION TECHNOLOGY
A proven "single-pivot" design that uses the flexing action of the chainstay/seatstay junction to produce a lightweight and durable suspension system with 4.7 inches/120mm of rear travel.
HYBRID CYCLING TECHNOLOGY
Hybrid Cycling Technology is a system that combines electric power with human power to produce the most efficient, powerful and natural E-bike riding experience. It's a seamless extension of a rider's own power that sets Liv and Giant E-bikes apart from other "electric" bicycles. The system consists of four key innovative technologies that work in unison with your own body's power output—a seamless extension of your own capabilities.
EnergyPak side release design makes it easy to handle and remove the battery from the E-bike, plus the battery can be charged on or off the bike for convenience.
This compact motor, co-developed with Yamaha, provides power, comfort, and battery efficiency. It's also blissfully silent. The Smart Assist mode uses six sensors to optimize your power support automatically. It provides seamless acceleration and a power boost exactly when you need it. With 75Nm of torque, you'll feel naturally strong in any riding situation and at any speed.
With Smart Assist you can enjoy seamless acceleration and power boost. The Smart Assist Technology system replicates a natural riding style, using the six sensors to add assistance exactly when needed.
This compact 2-in-1 control unit has everything you need at your fingertips. Glance down at the color display to check all your riding data, such as battery status, speed, distance, time, and cadence. Pair it with the RideControl App and you can opt to get phone notifications. Keep your electronic devices charged using the convenient USB port. Need to get off and walk a little? We've got you. Simply tap Walk Assist and easily push your bike uphill or over rough terrain.

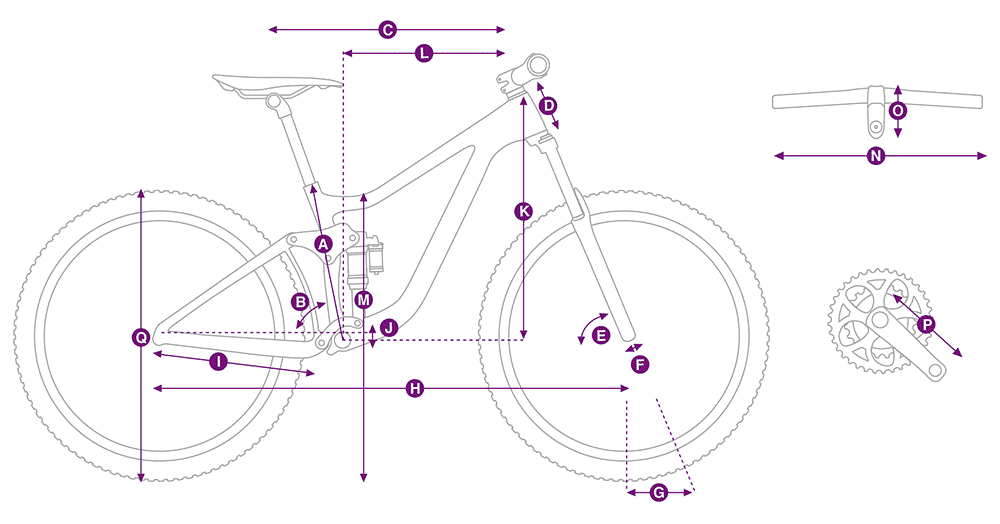

|A. SEAT TUBE LENGTH (mm)||380||395||425||455|
|B. SEAT TUBE ANGLE||77.0°||76.5°||76.0°||76.0°|
|C. TOP TUBE LENGTH (mm)||565||575||595||615|
|D. HEAD TUBE LENGTH (mm)||105||105||115||125|
|E. HEAD TUBE ANGLE||66.0°||66.0°||66.0°||66.0°|
|F. FORK RAKE (mm)||44||44||44||44|
|G. TRAIL (mm)||121||121||121||121|
|H. WHEELBASE (mm)||1201||1199||1215||1237|
|I. CHAIN STAY LENGTH (mm)||468||468||468||468|
|J. BOTTOM BRACKET DROP (mm)||20||40||40||40|
|K. STACK (mm)||601||621||630||639|
|L. REACH (mm)||426||426||438||455|
|M. STAND OVER HEIGHT (mm)||690||710||735||760|
|N. HANDLEBAR WIDTH (mm)||750||750||780||780|
|O. STEM LENGTH (mm)||40||40||50||60|
|P. CRANK LENGTH (mm)||165||165||165||165|
|Q. WHEEL SIZE||R27.5" / F29"||29"||29"||29"|
|X-Small||4'11" to 5'4"|
|Small||5'1" to 5'8"|
|Medium||5'5" to 5'9"|
|Large||5'7" to 5'11"|
|Frame||ALUXX SL-grade aluminum, 125mm travel FlexPoint suspension system, 148x12 rear axle, Universal Derrailleur hanger, 184x44 shock, 1.5~1.8" headset|
|Fork||SR Suntour XCR 34 LO-R, 140mm travel, tapered steerer, Lockout, 110x15 thru-axle|
|Rear Shock||SR Suntour Raidon R, 190x45mm, custom tuned|
|Rims||Giant AM 27.5", Tubeless ready, 30mm inner width|
|Hubs||Giant eTracker Boost, [F] 110x15 [R] 148x12mm|
|Tires||Maxxis Rekon 27.5x2.4" Foldable, TLR, EXO, 60TPI|
|Crankset||FSA Comet E-Bike crank arm set FSA MegaTooth Direct-mount 1X steel 36T|
|Shifters||Shimano Deore LinkGlide|
|Front Derailleur||MRP HD2 co-moulded chain guide|
|Rear Derailleur||Shimano Deore LinkGlide, 10-speed|
|Cassette/Freewheel||Shimano CS-LG400-10, 11-43T, 10-speed LinkGlide|
|Chain||Shimano, LinkGlide, CN-LG500|
|Brakes||Shimano BR-M420, 4-piston, hydraulic disc, 203mm|
|Brake Levers||Shimano Deore BL-M4100|
|Handlebars||Giant Connect TR Riser 31.8x750mm (XS-S), 780mm (M-L)|
|Tape/Grips||Liv Tactal Pro Single Lock-On Grips|
|Seatpost||Giant 30.9mm, 2-bolt Micro Adjustable, Forged aluminum|
|Saddle||Liv sylvia E|
|Accessories & Extras||
Giant Rekon E50 HL Axa BlueLine Steady E6 rear
Carrier: Giant Rack-It MIK
Lock: Torx 25 Battery Lock with built-in Torque limiter
|Motor||SyncDrive Sport 2, 75Nm, powered by Yamaha|
|Battery||EnergyPak Smart 625, EnergyPak Plus 250Wh range extender compatible|
|Controller/Display||RideControl Dash / RideControl Dash, full color LCD screen|
|Charger||EnergyPak 4A smart charger compact|
* Subject to change without notice.
|Copper Coin / X-Small||04712878880368||2303364103|
|Copper Coin / Medium||04712878880382||2303364105|
|Copper Coin / Large||04712878880399||2303364107|
