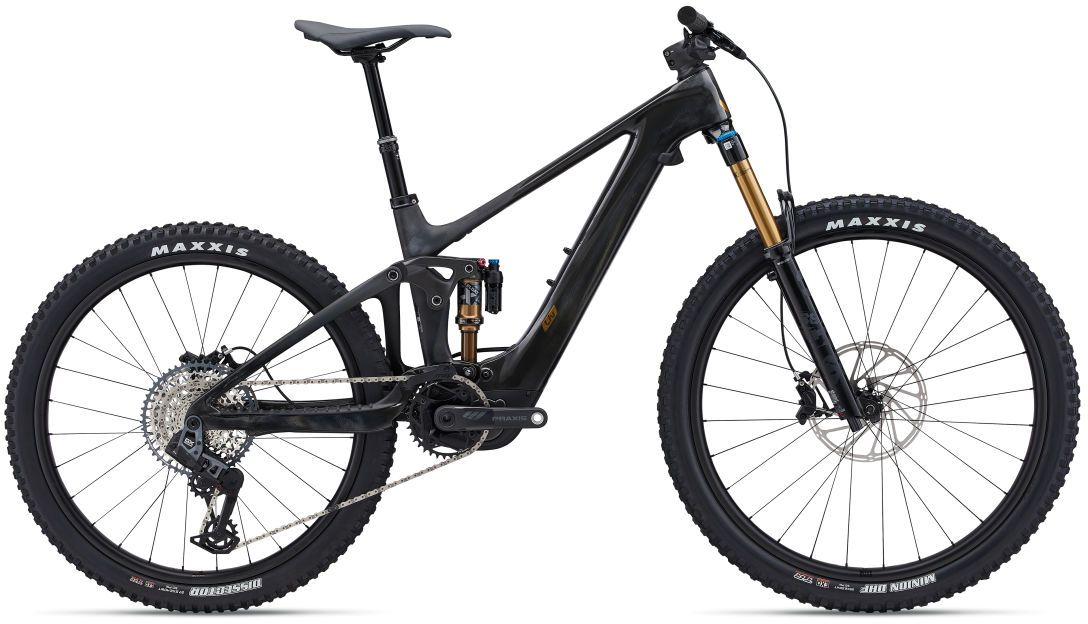

Liv Intrigue X Advanced E+ Elite 1

Liv Intrigue X Advanced E+ Elite 1
$12,499.00
Color: Raw Carbon
Size: Select size
Please select options Unavailable
Order now and pick up in-store for free

Details

Next-Level Performance And Unforgettable Fun Await You On This Premium E-Mtb.

The cutting-edge Intrigue X Advanced E+ Elite is remarkably light yet super powerful. Get ready to feel like a pro as you shred technical terrain with confidence, accelerate up climbs, and corner at top speed.

Key Performance Factors:

- Lightweight and nimble
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient, and responsive ride. Exceptional shock absorption is an added bonus in rock gardens.

- Powerful and smooth
A powerful 85Nm of torque delivered by the lightweight SyncDrive Pro 2 motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimizes weight and provides a perfect balance of efficiency and range.

- Sleek design
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.

Techs and Features:

- Advanced Composite Technology
Liv's High-Performance Grade raw carbon material is used to produce this frameset in our own composite factory. Using state-of-the-art materials and manufacturing techniques, Liv's Advanced-Grade Composite frames are designed to offer lightweight and stiffness with optimal compliance.

- EnergyPak
EnergyPak side release design makes it easy to handle and remove the battery from the E-bike, plus the battery can be charged on or off the bike for convenience.

- Hybrid Cycling Technology
Hybrid Cycling Technology is a system that combines electric power with human power to produce the most efficient, powerful, and natural E-bike riding experience. It's a seamless extension of a rider's own power that sets Liv and Giant E-bikes apart from other “electric" bicycles. The system consists of four key innovative technologies that work in unison with your own body's power output - a seamless extension of your own capabilities.

- RideControl Go
Available on premium Liv E-Bikes, RideControl Go features a multipurpose button integrated into the top tube. Colored LEDs allow you to switch power modes from the top tube and keep a clean handlebar setup. The lights also display battery level and support mode.

- Smart Assist
With Smart Assist you can enjoy seamless acceleration and power boost. The Smart Assist Technology system replicates a natural riding style, using the six sensors to add assistance exactly when needed.

- SyncDrive Pro
The powerful SyncDrive Pro 2 Motor was co-developed with Yamaha and is their lightest ever E-bike motor. It provides 85Nm of torque, the most in the Amiti E+ range, and will help you confidently conquer the steepest of hills. The Smart Assist mode uses six sensors to optimize your power support automatically. It provides seamless acceleration and a power boost exactly when you need it. With this powerful yet quiet motor underneath you, you'll feel naturally strong in any riding situation and at any speed.

Geometry

Sizes:
Frame SizeX-SmallSmallMediumLarge
A - SEAT TUBE LENGTH (mm) low / high 380 400 425 450
B - SEAT TUBE ANGLE low / high 77.2° / 78.0° 77.2° / 78.0° 76.0° / 76.7° 76.0° / 76.7°
C - TOP TUBE LENGTH (mm) low / high 557 / 555 572 / 570 597 / 595 622 / 620
D - HEAD TUBE LENGTH (mm) 95 95 100 115
E - HEAD TUBE ANGLE low / high 65.7° / 66.5° 65.7° / 66.5° 65.8° / 66.5° 65.8° / 66.5°
F - FORK RAKE (mm) 44 44 44 44
G - TRAIL (mm) low / high 113 / 108 113 / 108 113 / 108 113 / 108
H - WHEELBASE (mm) low / high 1174 / 1175 1188 / 1190 1200 / 1201 1228 / 1229
I - CHAIN STAY LENGTH (mm) low / high 447 / 447 447 / 447 447 / 447 447 / 447
J - BOTTOM BRACKET DROP (mm) low / high 30 / 20 30 / 20 30 / 20 30 / 20
K - STACK (mm) low / high 606 / 601 606 / 601 611 / 605 625 / 619
L - REACH (mm) low / high 419 / 427 434 / 442 444 / 452 466 / 473
M - STAND OVER HEIGHT (mm) low / high 722 / 730 726 / 735 717 / 726 711 / 723
N - HANDLEBAR WIDTH (mm) 760 760 800 800
O - STEM LENGTH (mm) 40 40 40 50
P - CRANK LENGTH (mm) 160 160 165 165
Q - WHEEL SIZE R27.5" / F29" R27.5" / F29" R27.5" / F29" R27.5" / F29"
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
X-Small 152 - 163 5'0" - 5'4"
Small 158 - 169 5'2" - 5'7"
Medium 164 - 175 5'5" - 5'9"
Large 170 - 181 5'7" - 5'11"

Specs

Frame Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
Fork Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110
Rear Shock Fox Float X Factory, EVOL, 185x52.5mm Trunnion mount, custom tuned
Rims E-TRX Hookless Tubeless ready Carbon 29 [F] / 27.5 [R]30mm inner width
Hubs E-TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
Tires Front: Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO
Rear: Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO
Crankset Praxis Performance Carbon e-crank arms(XS:160, S/M:165, L:170) SRAM X-SYNC Eagle 36T chain ring
Shifters SRAM AXS new NGD controller, wireless electronic shifting
Front Derailleur MRP HD2 co-moulded chain guide
Rear Derailleur SRAM GX Eagle Transmission, AXS
Cassette/Freewheel SRAM GX Eagle Transmission, 10-52T, 12-speed
Chain SRAM GX Eagle Transmission Flattop Chain, Powerlock
Brakes SRAM Code R, hydraulic disc
Rotors Front: SRAM 220mm
Rear: SRAM 200mm
Brake Levers SRAM Code R
Handlebars Giant Contact SLR Trail, carbon, 760mm (XS-S), 800mm (M-L)
Tape/Grips Liv Tactal Pro-E Single Lock-On Grips
Stem Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System
Seatpost Tranz-X Rad+ dropper, 30,9mm, 30mm travel adjustable (XS/S:120~150mm, M:140~170mm, L:170~200mm) (*3mm housing recommended)
Saddle Liv Sylvia E+
Pedals Sold Separately
Accessories & Extras Tubeless kit (liquid, valves, levers, manual, tool)
Motor Giant SyncDrive Pro2 Mg, 85Nm, Magnasium Casing, powered by Yamaha, PedalPlus 6-Sensor technology
Battery Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
Controller/Display RideControl Ergo 3, grip integrated
RideControl GO, frame integrated LED display ANT+ Wireless display compatible

* Subject to change without notice.

Part Numbers

Option UPC MPN
Raw Carbon / X-Small 04712878922945 5290300103
Raw Carbon / Small 04712878922952 5290300104
Raw Carbon / Medium 04712878922969 5290300105
