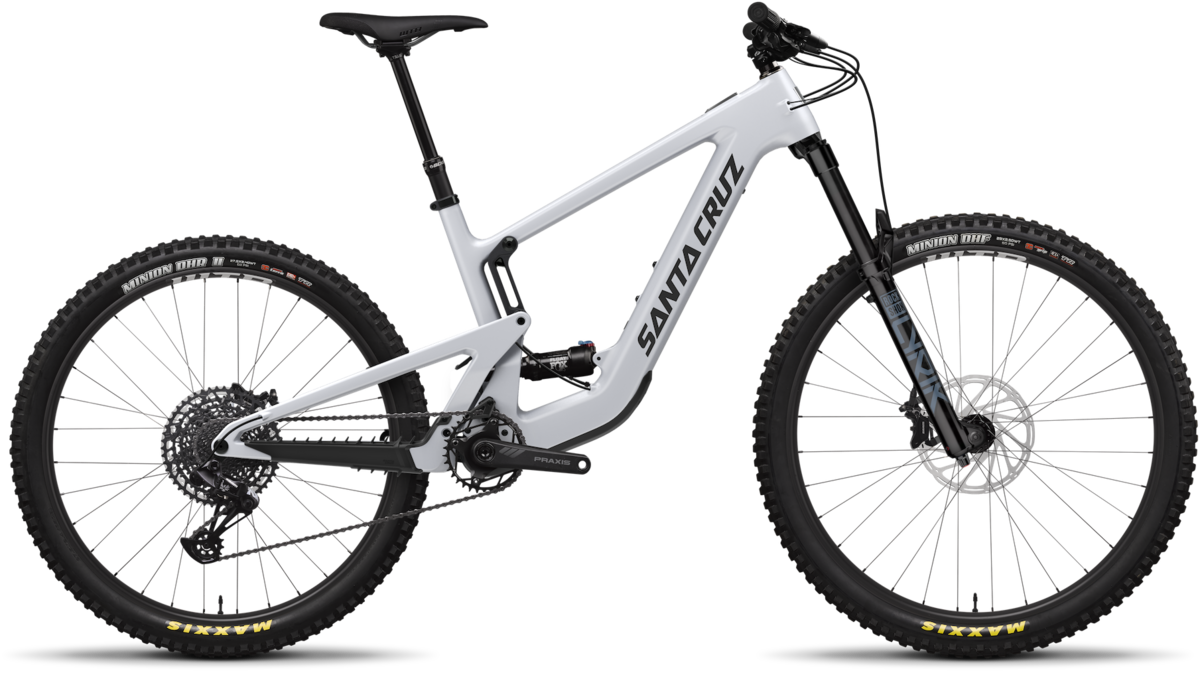

Santa Cruz Heckler SL R MX | Carbon C

Santa Cruz Heckler SL R MX | Carbon C
  • Color: Gloss Magenta
  • Color: Matte Silver
$9,499.00
Please select options Unavailable
Order now and pick up in-store for free

Details

A sneaky ebike that's lightweight, powerful, and has surprising range. All the on-trail traits of a Santa Cruz combined with the FAZUA RIDE 60 drive unit. 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry make the Heckler SL a natural handling trail bike. Just with the added power of an ebike.

Sizes:
SIZESmallMediumLargeX-LargeXX-Large
Reach (mm) (HI/LO) 435 / 432.4 460 / 457.4 480 / 477.5 500 / 497.4 525 / 522.5
Stack (mm) (HI/LO) 614.9 / 616.8 624 / 625.8 633 / 634.9 651 / 653 664.5 / 666.5
Head Tube Angle (°) (HI/LO) 64.3 / 64 64.3 / 64 64.3 / 64 64.3 / 64 64.3 / 64
Head Tube Length (mm) (HI/LO) 100 / 100 110 / 110 120 / 120 140 / 140 155 / 155
Rear Center (mm) (HI/LO) 443 / 443.8 443 / 443.8 443 / 443.8 446 / 446.8 450 / 450.7
Front Center (mm) (HI/LO) 766.1 / 765.9 795.4 / 795.3 819.7 / 819.6 848.4 / 848.3 879.9 / 879.8
BB Height (mm) (HI/LO) 344 / 340.7 344 / 340.7 344 / 340.7 344 / 340.7 344 / 340.7
BB Drop-Front (mm) (HI/LO) 28.5 / 31.8 28.5 / 31.8 28.5 / 31.8 28.5 / 31.8 28.5 / 31.8
BB Drop-Rear (mm) (HI/LO) 9.9 / 13.3 9.9 / 13.3 9.9 / 13.3 9.9 / 13.3 9.9 / 13.3
Wheelbase (mm) (HI/LO) 1209.1 / 1209.7 1238.4 / 1239.1 1262.7 / 1263.4 1294.4 / 1295.1 1329.9 / 1330.5
Top Tube Length (mm) (HI/LO) 569.2 / 579.6 602.7 / 602.9 620.6 / 621.5 641.8 / 642.7 669.1 / 670
Seat Tube Length (mm) (HI/LO) 380 / 380 405 / 405 430 / 430 460 / 460 500 / 500
Seat Height (mm) (HI/LO) 680 / 680 730 / 730 780 / 780 830 / 830 870 / 870
Seat Tube Angle (°) (HI/LO) 77.8 / 76.6 77.1 / 76.9 77.5 / 77.2 77.7 / 77.5 77.8 / 77.5
Standover (mm) (HI/LO) 720.1 / 716.2 733 / 728.8 733.4 / 729.3 731.7 / 731.6 741 / 738.6

Specs

Frame Santa Cruz Carbon C Frame
Fork RockShox Lyrik Base 160 29"
Rear Shock Fox Float Performance 210x55
Rims Front: WTB ST i30 TCS 2.0 29" Rim
Rear: WTB ST i30 TCS 2.0 27.5" Rim
Hubs Front: SRAM MTH 716 110 TC 32h
Rear: SRAM MTH 746 148 HG 32H
Tires Front: Maxxis Mnon DHF 29x2.5 3C EXO MG TR
Rear: Maxxis Minion DHRII 27.5x2.4 3C EXO+
Crankset Praxis eTor AL 104BCD Cranks 165mm
Shifters SRAM NX Eagle Single Click Trigger
Rear Derailleur SRAM NX Eagle 1x12s
Cassette/Freewheel SRAM Eagle PG 1230, 11-50t
Chain SRAM NX Eagle Chain 12s
Brakes SRAM DB8 Disc Brakes
Rotors Avid Centerline Rotor 200mm
Handlebars e13 TRS Base Bar, 35x800, 35mm Rise
Tape/Grips Sant Cruz House 32mm Grip, Black
Stem e13 TRS Base Stem 35x40mm
Headset FSA IS-2/47/42/ACB Headset
Seatpost SDG 24 Tellis Dropper 31.6 170mm
Saddle WTB Silverado Medium CroMo
Pedals Sold Separately
Motor Fazua Ride 60 Drive Unit (Wide)
Battery Fazua Energy 430 Battery
Charger Fazua Charger 3A w/o Plug

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Magenta / Small 192219414850 58-24298-147-2-825-642701-11
Gloss Magenta / Medium 192219415079 58-24298-147-3-825-642701-11
Gloss Magenta / Large 192219415291 58-24298-147-4-825-642701-11
Gloss Magenta / X-Large 192219415512 58-24298-147-5-825-642701-11
Gloss Magenta / XX-Large 192219415734 58-24298-147-6-825-642701-11
Matte Silver / Small 192219414744 58-24298-147-2-824-642701-11
Matte Silver / Medium 192219414966 58-24298-147-3-824-642701-11
Matte Silver / Large 192219415185 58-24298-147-4-824-642701-11 210000022434
Matte Silver / X-Large 192219415406 58-24298-147-5-824-642701-11
Matte Silver / XX-Large 192219415628 58-24298-147-6-824-642701-11
